COLORS
DECORS
Decoro Magnum
Modulo Muretto Sfalsato Magnum

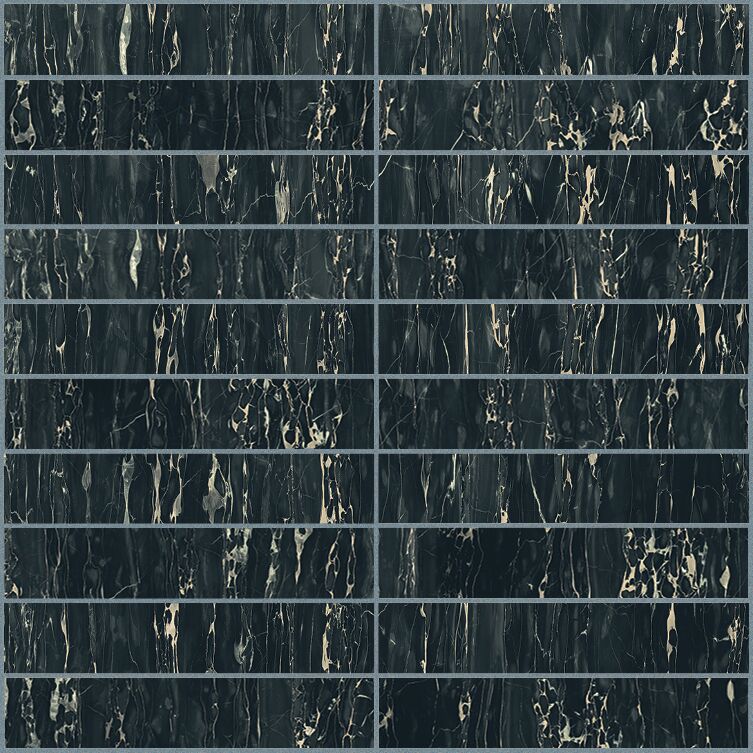

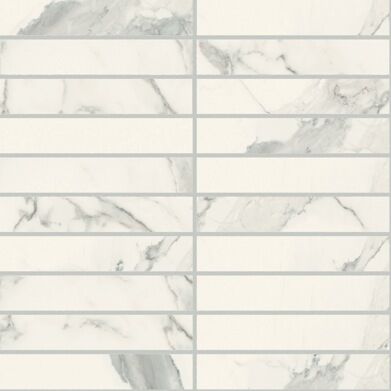

Mosaico
Mosaico Magnum
DIMENSIONS & FINISHES
| COLOR | SIZE AVAILABILITY | THICKNESS | FINISH |

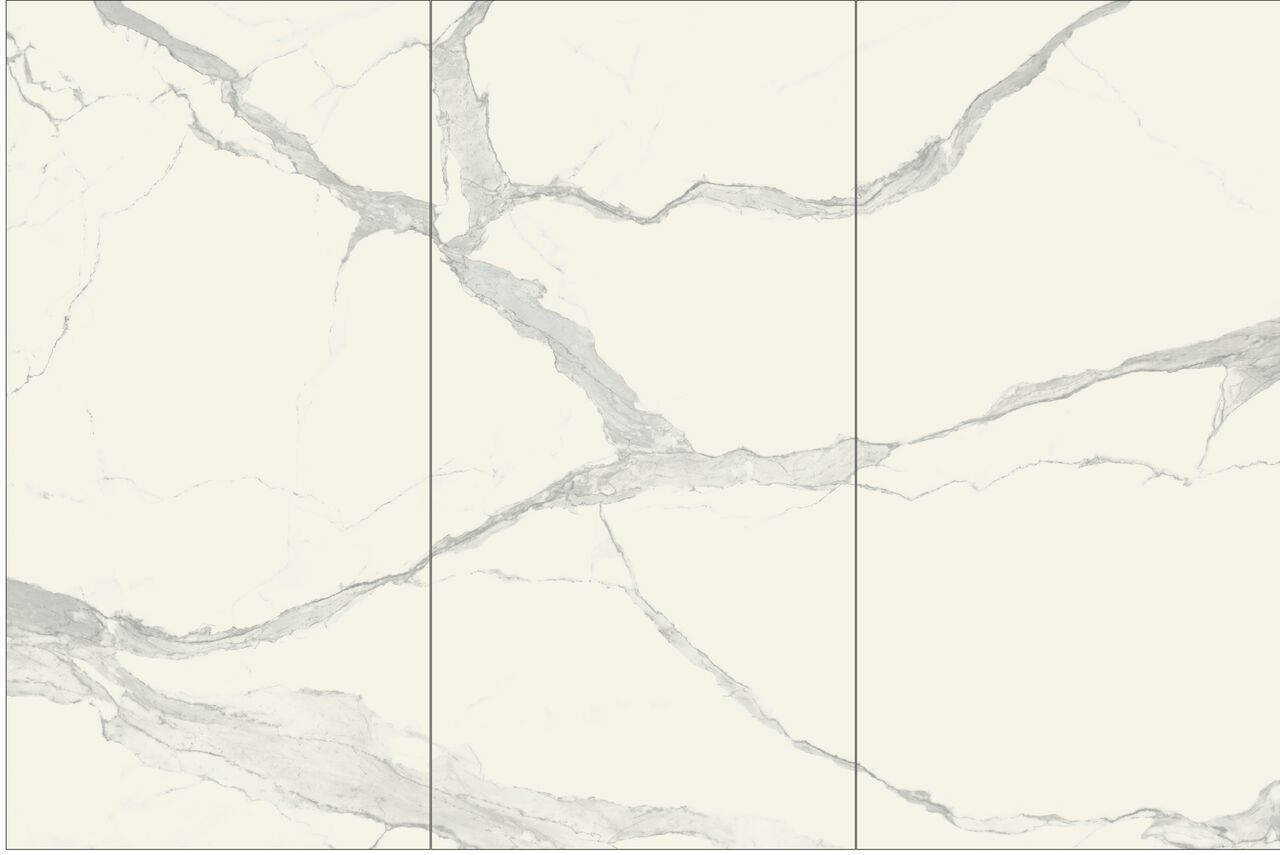

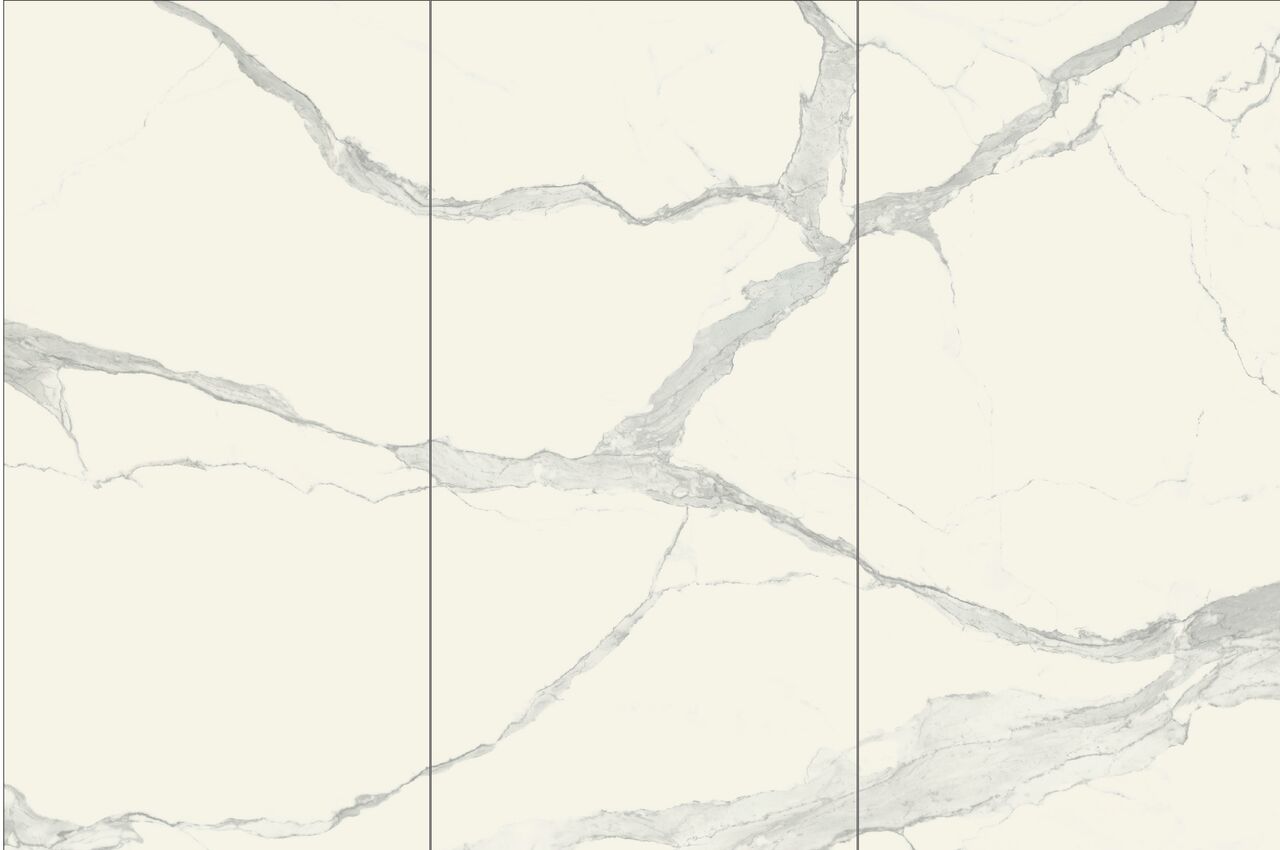

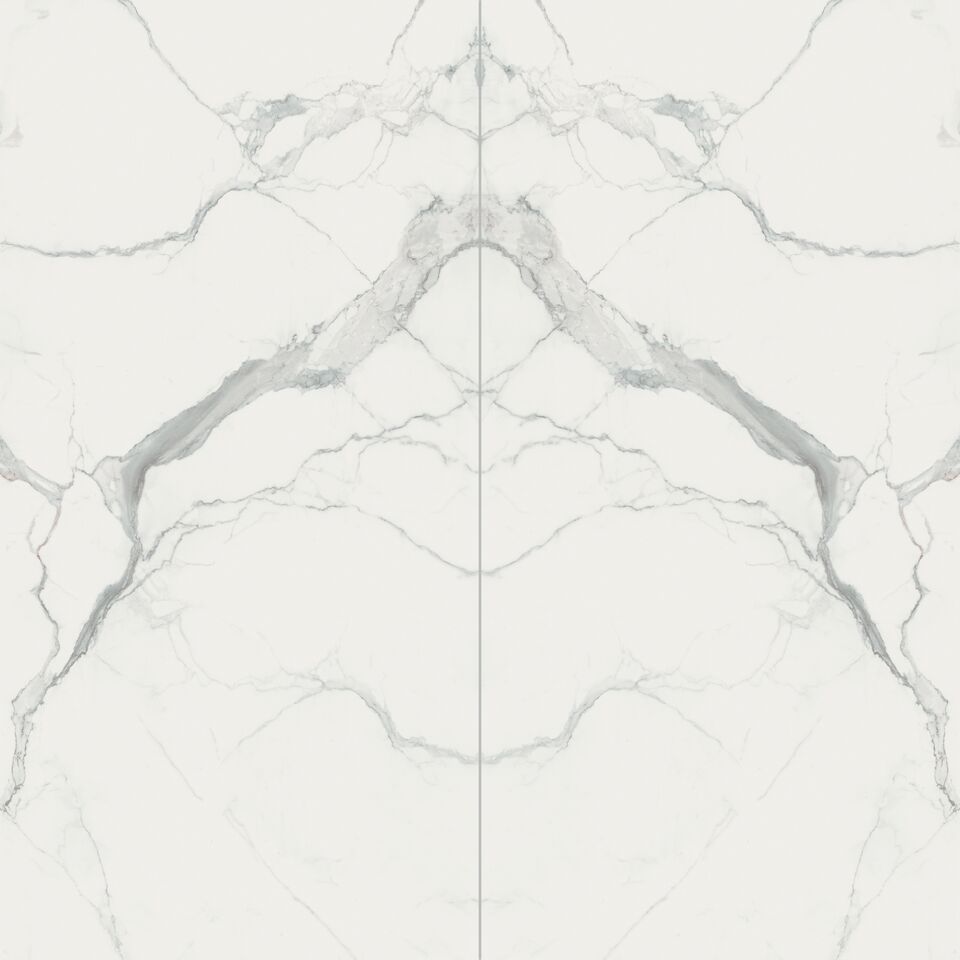

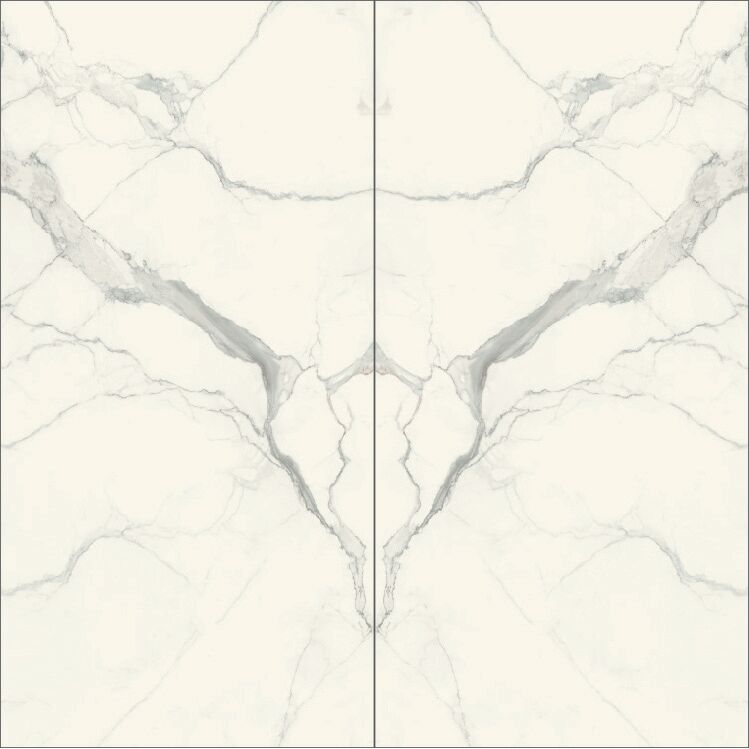

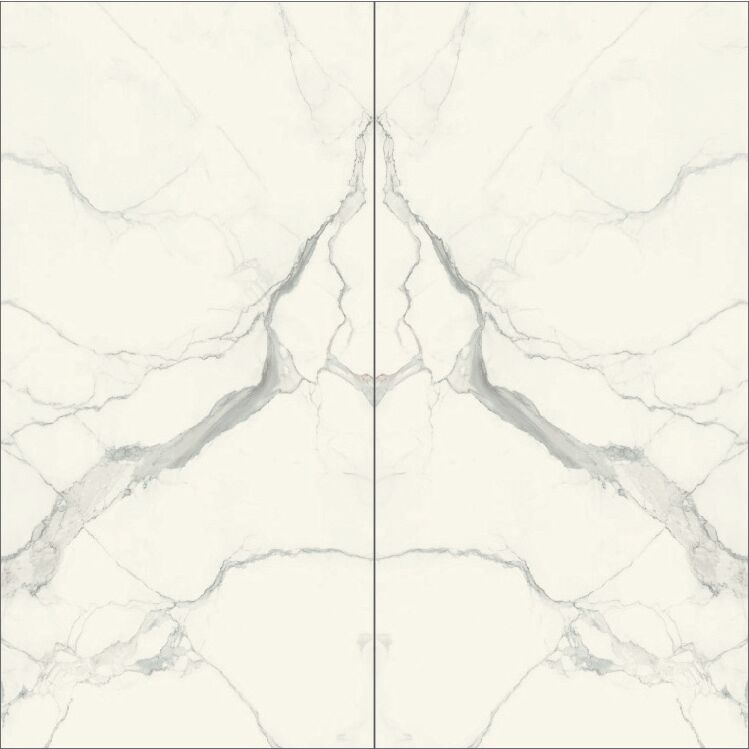

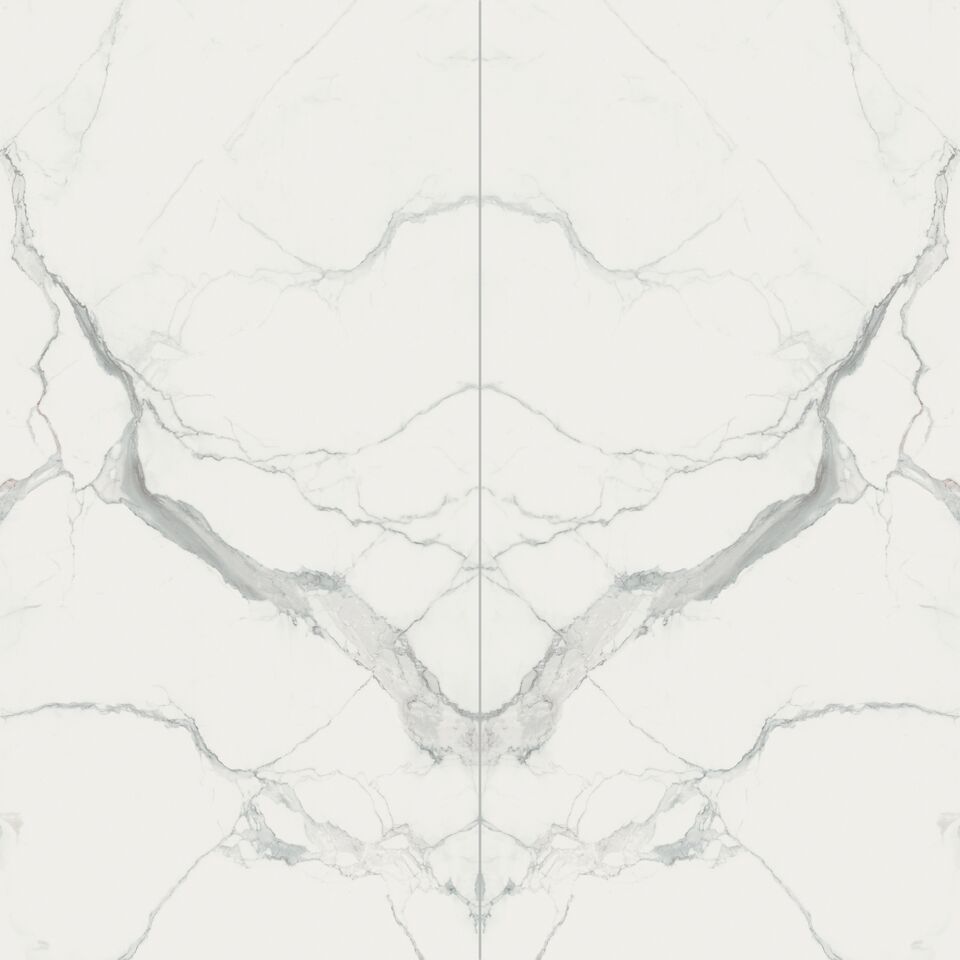

| Statuario | 12 X 24, 24 X 24, 12 X 48, 24 X 48, 32 X 32 | 10mm | Soft |
|---|---|---|---|
| 12 X 24, 24 X 24, 12 X 48, 24 X 48, 32 X 32 | 10mm | Glossy | |
| 24 X 48, 32 X 32, 32 X 95, 48 X 48, 48 X 95, 48 X 111, 64 X 64, 64 X 126 | 6mm | Soft | |
| 24 X 48, 32 X 32, 32 X 95, 48 X 48, 48 X 95, 48 X 111, 64 X 64, 64 X 126 | 6mm | Glossy | |
| Deco Wood White | 6 X 48, 8 X 48, 12 X 48, 8 X 71, 10.5 X 71 | 10mm | Matte |
| Deco Wood Pearl | 6 X 48, 8 X 48, 12 X 48, 8 X 71, 10.5 X 71, | 10mm | Matte |
| Deco Wood Black | 6 X 48, 8 X 48, 12 X 48, 8 X 71, 10.5 X 71, | 10mm | Matte |

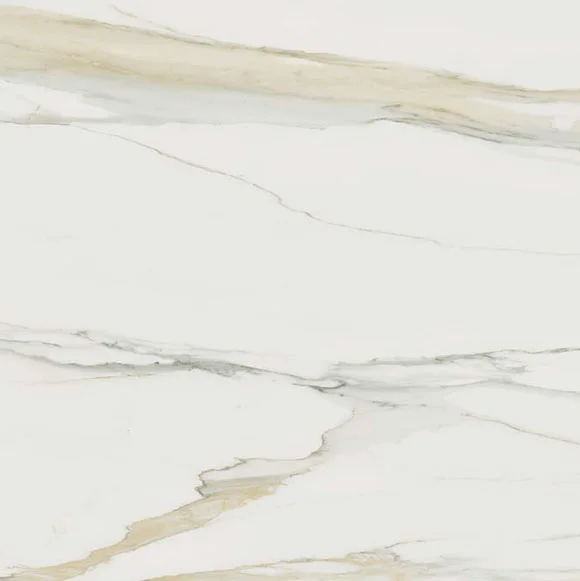

| Calacatta Gold | 12 X 24, 12 X 48, 24 X 24, 24 X 48, 32 X 32 | 10mm | Matte |
| 12 X 24, 12 X 48, 24 X 24, 24 X 48, 32 X 32 | 10mm | Glossy | |
| 32 X 32, 24 X 48, 32 X 95, 48 X 48, 48 X 95, 48 X 111, 64 X 64, 64 X 126 | 6mm | Matte | |
| 32 X 32, 24 X 48, 32 X 95, 48 X 48, 48 X 95, 48 X 111, 64 X 64, 64 X 126 | 6mm | Glossy | |
| Marquinia | 12 X 24, 12 X 48, 24 X 24, 24 X 48, 32 X 32, 32 x 71 | 10mm | Matte |
| 12 X 24, 12 X 48, 24 X 24, 24 X 48, 32 X 32, 32 X 71 | 10mm | Glossy | |
| 24 X 48, 32 X 32, 48 X 48, 48 X 95, 64 X 64, 64 X 126 | 6mm | Matte | |
| 24 X 48, 32 X 32, 48 X 48, 48 X 95, 64 X 64, 64 X 126 | 6mm | Glossy | |

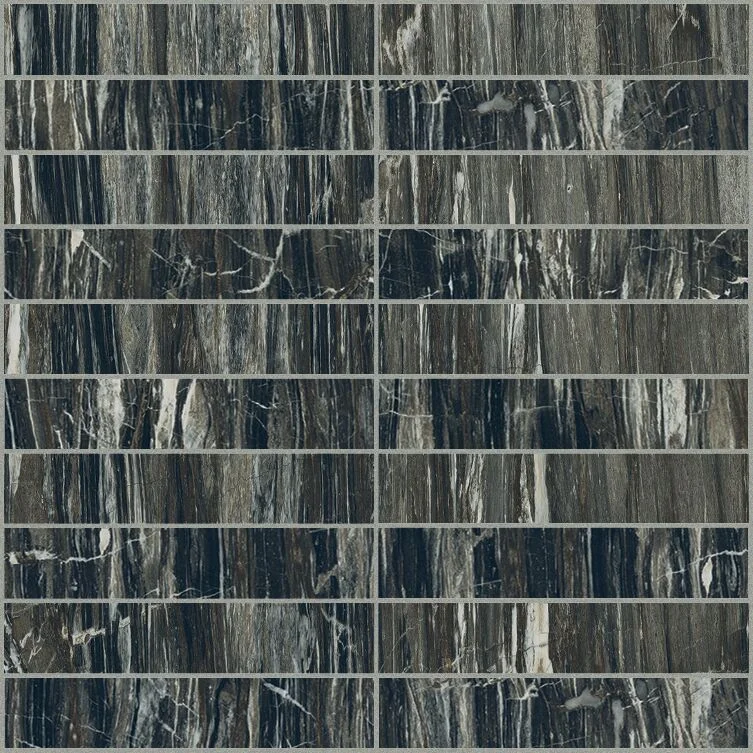

| Brazilian | 12 X 24, 12 X 48, 24 X 24, 24 X 48, 32 X 32, 32 x 71 | 10mm | Glossy |
| 24 X 48, 32 X 32, 48 X 48, 48 X 95, 64 X 64, 64 X 126 | 6mm | Glossy | |
| Portoro | 12 X 24, 12 X 48, 24 X 24, 24 X 48, 32 X 32, 32 x 71 | 10mm | Glossy |
| 24 X 48, 32 X 32, 48 X 48, 48 X 95, 64 X 64, 64 X 126 | 6mm | Glossy |
TECHNICAL INFO
| Reference standard | Test method | Reference value | Declared value |
| Length and width: admitted deviation, in %, of the average size of each tile from the production dimensions | ISO-10545-2 | ±0.6% (±2 mm) | ±0.15% |
|---|---|---|---|
| Admitted deviation, in %, of the average thickness of each tile from the production dimensions | ISO-10545-2 | ±5% (±0.5 mm) | ±5% |
| Maximum straightness deviation, in %, in relation to the corresponding production dimensions | ISO-10545-2 | ±0.5% (±1.5 mm) | ±0.1% |
| Maximum right-angle deviation, in %, in relation to the corresponding production dimensions | ISO-10545-2 | ±0.5% (±2 mm) | ±0.2% |
| Flatness (centre curvature / edge curvature / warpage) | ISO-10545-2 | ±0.5% (±2mm) | ±0.35% |
| Surface quality | ISO-10545-2 | At least 95% of the tiles must be free from visible flaws | Conforming |
| Amount of water absorbed, in percentage | ISO-10545-3 | E<0.5% | average value 0.08% |
| Breaking strength in N (thickness >= 7.5 mm) | ISO-10545-4 | ≥1300 Newton | average value 3200 N |
| Bending strength in N/mm2 | ISO-10545-4 | >35 N/mm2 | average value 50 N/mm2 |
| Thermal shock resistance | ISO-10545-9 | - | Resistant |
| Resistance to abrasion of glazed tiles | ISO-10545-7 | See manufacturer’s declaration | Cl. 4 (Statuario, Calacatta Gold); Cl. 3 (Brazilian, Portoro, Marquinia) |
| Glaze crazing resistence | ISO-10545-11 | Required | Resistant |
| Resistance to staining | ISO-10545-14 | Class 3 minimum | Cl. 4 glossy |
| Resistance to staining | ISO-10545-14 | Class 3 minimum | Cl. 3 matte |
| Resistance to low concentrations of acids and alkali | ISO-10545-13 | See manufacturer’s declaration | GLB |
| Resistance to domestic chemicals and additives for swimming pools | ISO-10545-13 | GB minimum | GA |
| Dynamic coefficient of friction (section 9.6 ANSI A 137.1 2012) | DCOF | >0.42 wet | >0.42 wet matte |
| Frost resistance | ISO-10545-12 | Required | Resistant |
