INDUSTRIAL

$0.00

Made in fine porcelain stoneware, Industrial stands out for its wide range of colors, modular sizes, thickness and finish options. This collection is effective and attractive in any architectural context.

Made in fine porcelain stoneware, Industrial stands out for its wide range of colors, modular sizes, thickness and finish options. This collection is effective and attractive in any architectural context.

COLORS

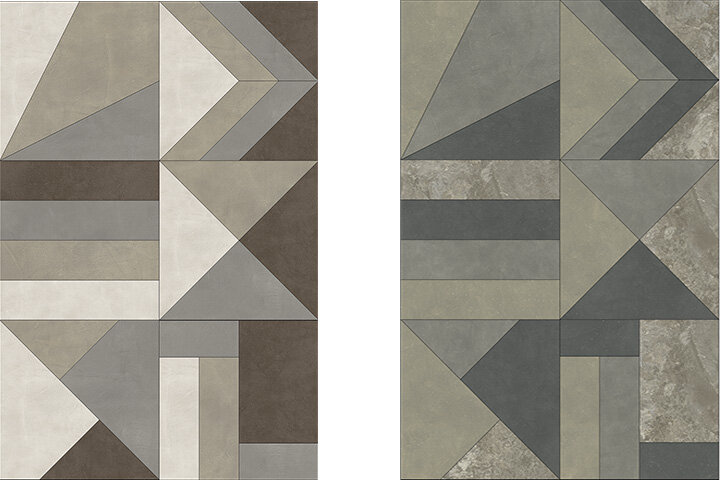

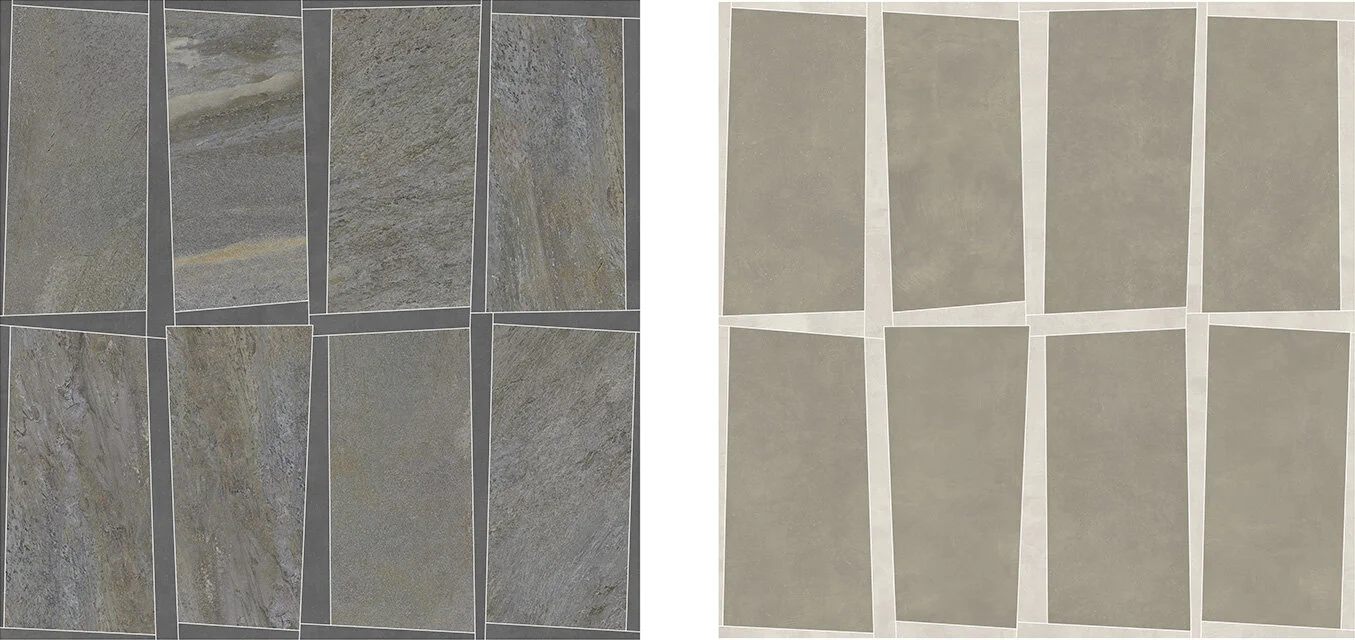

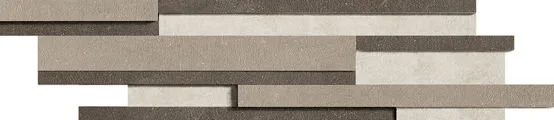

DECORS
DIMENSIONS
COLOR SIZE AVAILABILITY THICKNESS FINISH
Ivory 12 X 24, 24 X 24, 24 X 48, 8 x 32, 16 X 32, 32 X 32, 48 X 48, 48 X 95, 48 X 111, 63 X 63, 63 X 126, 12 x 12 Mosaics, 63 x 63 Puzzle Mosaics 6mm, 10mm, and 20mm(varies based on size and finish chosen) Matte, R+ptv, Brush-hammered, and Soft(varies based on size chosen)
Sage 12 X 24, 24 X 24, 24 X 48, 8 x 32, 16 X 32, 32 X 32, 48 X 48, 48 X 95, 48 X 111, 63 X 63, 63 X 126, 12 x 12 Mosaics, 63 x 63 Puzzle Mosaics 6mm, 10mm, and 20mm(varies based on size and finish chosen) Matte, R+ptv, Brush-hammered, and Soft(varies based on size chosen)
Steel 12 X 24, 24 X 24, 24 X 48, 8 x 32, 16 X 32, 32 X 32, 48 X 48, 48 X 95, 48 X 111, 63 X 63, 63 X 126, 12 x 12 Mosaics, 63 x 63 Puzzle Mosaics 6mm, 10mm, and 20mm(varies based on size and finish chosen) Matte, R+ptv, Brush-hammered, and Soft(varies based on size chosen)
Plomb 12 X 24, 24 X 24, 24 X 48, 8 x 32, 16 X 32, 32 X 32, 48 X 48, 48 X 95, 48 X 111, 63 X 63, 63 X 126, 12 x 12 Mosaics, 63 x 63 Puzzle Mosaics 6mm, 10mm, and 20mm(varies based on size and finish chosen) Matte, R+ptv, Brush-hammered, and Soft(varies based on size chosen)
Taupe 12 X 24, 24 X 24, 24 X 48, 8 x 32, 16 X 32, 32 X 32, 48 X 48, 48 X 95, 48 X 111, 63 X 63, 63 X 126, 12 x 12 Mosaics, 63 x 63 Puzzle Mosaics 6mm, 10mm, and 20mm(varies based on size and finish chosen) Matte, R+ptv, Brush-hammered, and Soft(varies based on size chosen)
Moka 12 X 24, 24 X 24, 24 X 48, 8 x 32, 16 X 32, 32 X 32, 48 X 48, 48 X 95, 48 X 111, 63 X 63, 63 X 126, 12 x 12 Mosaics, 63 x 63 Puzzle Mosaics 6mm, 10mm, and 20mm(varies based on size and finish chosen) Matte, R+ptv, Brush-hammered, and Soft(varies based on size chosen)
TECHNICAL INFO

6mm, 10mm, and 20mm (Fine Porcelain Stoneware)

For optimal installation results, Florim recommends maintaining a joint of 2 mm 1/12” for single format installations and 3 mm 1/8” to combine mixed formats.
PHYSICAL/CHEMICAL PROPERTIES TEST METHOD REFERENCE VALUE DECLARED VALUE
Length and width: admitted deviation, in %, of the average size of each tile from the production dimensions ISO 10545-2 ± 0.6% (±2 mm) ± 0.15%
Admitted deviation, in %, of the average thickness of each tile from the production dimensions ISO 10545-2 ±5% (±0.5 mm) ± 5%
Maximum straightness deviation, in %, in relation to the corresponding production dimensions ISO 10545-2 ±0.5% (±1.5 mm) ± 0.1%
Maximum right-angle deviation, in %, in relation to the corresponding production dimensions ISO 10545-2 ± 0.5% (±2 mm) ± 0.2%
Flatness/Warpage ISO 10545-2 ± 0.5% (± 2mm) ± 0.35%
Surface quality ISO 10545-2 At least 95% of the tiles must be free from visible flaws. Conforming
Amount of water absorbed, in percentage ISO 10545-3 E≤0.5% average value 0.08%
Breaking strength in N (thickness < 7.5 mm) ISO 10545-4 ≥1300 Newton average value 3200 N
Bending strength in N/mm2 ISO 10545-4 >35 N/mm2 average value 50 N/mm2
Resistance to deep abrasion of unglazed tiles ISO 10545-6 <175 mm3 average value 140
Thermal shock resistance ISO-10545-9 - Resistant
Resistance to staining ISO 10545-14 - CI. 3-4
Resistance to low and high concentrations of acids and alkali UNI EN ISO 10545-13 Available upon request ULA-UHA-ULA-ULB Soft
Resistance to domestic chemicals and additives for swimming pools UNI EN ISO 10545-13 UB Minimum UA
Slip resistance with shoes and without DIN-51130:2010 and DIN-51097 - WITH:R10 Matte, R9 Soft, R11 Brush-hammered WITHOUT: CI A+B Matte, CI. A+B+C Brush-hammered, CI. A Soft
Dynamic coefficient of friction (section 9.6 ANSI A 137.1) DCOF >0.42 wet > 0.42 wet Matte
