RILIEVI

$0.00

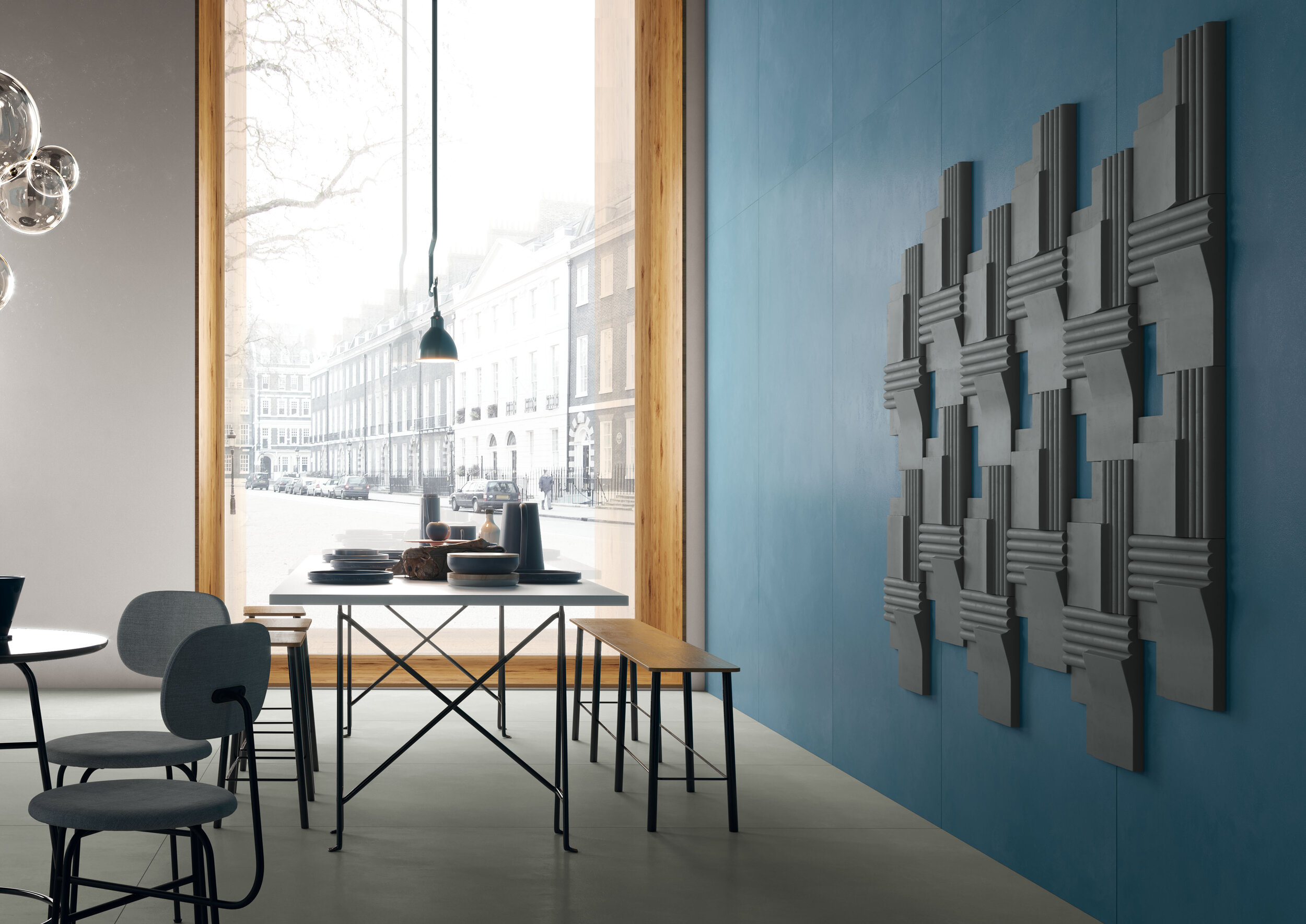

This collection is the outcome of an elaborate design process starting from meticulous, highly successful work to combine two basic elements: a large ceramic slab and a three-dimensional "relief tile" placed on top of it.

COLORS

Nebbia

Sabbia

Salvia

Terra

Lido

Cielo

DECORS

Decor 1

Decor 2

Decor 3

Decor 4

Decor 5

Decor 6

Decor 7

Decor 8

Decor 9

Decor 10

Decor 11

Decor 12

Decor 13

Decor 14

Decor 15

Decor 16

Decor 17

Decor 18

Decor 19

Decor 20

Decor 21

DIMENSIONS






      COLOR
      SIZE AVAILABILITY
      THICKNESS
      FINISH


      Nebbia
      24 X 48, 48 x 48, 48 x 95, 14 x 14 Decor pieces(all)
      6mm
      Matte


      Sabbia
      24 X 48, 48 x 48, 48 x 95, 14 x 14 Decor pieces(all)
      6mm
      Matte


      Salvia
      24 X 48, 48 x 48, 48 x 95, 14 x 14 Decor pieces(all)
      6mm
      Matte


      Terra
      24 X 48, 48 x 48, 48 x 95, 14 x 14 Decor pieces(all)
      6mm
      Matte


      Lido
      24 X 48, 48 x 48, 48 x 95, 14 x 14 Decor pieces(all)
      6mm
      Matte


      Cielo
      24 X 48, 48 x 48, 48 x 95, 14 x 14 Decor pieces(all)
      6mm
      Matte


TECHNICAL INFO

6mm(Fine Porcelain Stoneware)
 *Test performed on 32 x 32 size.

For optimal installation results, Florim recommends maintaining a joint of 2 mm 1/12” for single format installations and 3 mm 1/8” to combine mixed formats.






      PHYSICAL/CHEMICAL PROPERTIES
      TEST METHOD
      REFERENCE VALUE
      DECLARED VALUE


      Length and width: admitted deviation, in %, of the average size of each tile from the production dimensions
      ISO 10545-2
      ± 0.6% (±2 mm)
      ± 0.15%


      Admitted deviation, in %, of the average thickness of each tile from the production dimensions
      ISO 10545-2
      ±5% (±0.5 mm)
      ± 5%


      Maximum straightness deviation, in %, in relation to the corresponding production dimensions
      ISO 10545-2
      ±0.5% (±1.5 mm)
      ± 0.1%


      Maximum right-angle deviation, in %, in relation to the corresponding production dimensions
      ISO 10545-2
      ± 0.5% (±2 mm)
      ± 0.2%


      Flatness/Warpage
      ISO 10545-2
      ± 0.5% (± 2mm)
      ± 0.2%


      Surface quality
      ISO 10545-2
      At least 95% of the tiles must be free from visible flaws.
      Conforming


      Amount of water absorbed, in percentage
      ISO 10545-3
      E≤0.5%
      average value 0.08%


      Breaking strength in N (thickness < 7.5 mm)
      ISO 10545-4
      ≥700 Newton
      average value 1350 N*


      Bending strength in N/mm2
      ISO 10545-4
      >35 N/mm2
      average value 52 N/mm2


      Resistance to deep abrasion of unglazed tiles
      ISO 10545-7
      <175 mm3
      average value 140 mm3


      Thermal shock resistance
      ISO-10545-9
      -
      Resistant


      Resistance to staining
      ISO 10545-14

      CI. 4-5


      Resistance to low and high concentrations of acids and alkali
      UNI EN ISO 10545-13
      Available upon request
      Low: ULA-ULB   High: UHA-UHB


      Resistance to domestic chemicals and additives for swimming pools
      UNI EN ISO 10545-13
      UB Minimum
      UA


      Dynamic coefficient of friction(section 9.6 ANSI A 137.1 2012)
      DCOF
      >0.42 wet
       wet >0.42


      Frost Resistance
      ISO-10545-12
      Required
      Resistant
